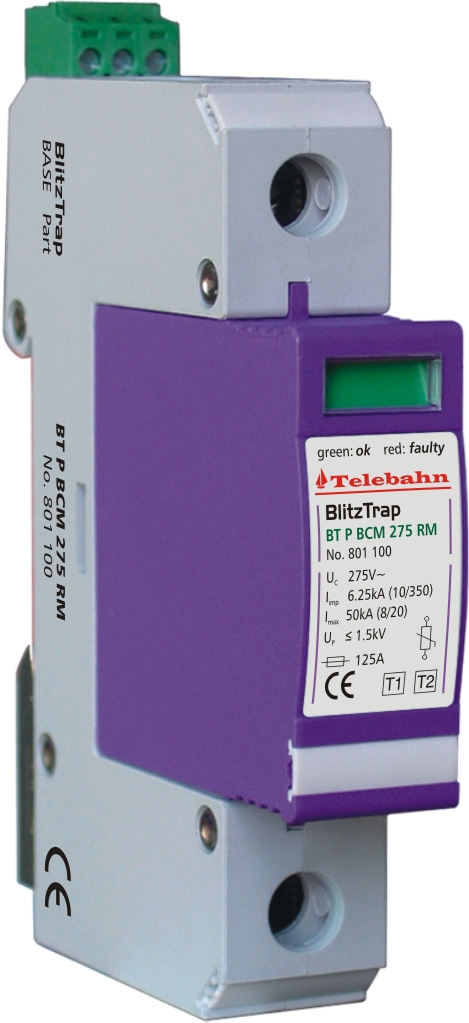

Product introduction:

For installation at LPZ 0_A -2 or higher, protecting low voltage devices from surge damages. Applied in SPD Class I+II (Class B+C) for various power supply system of lightning current surge protection. Designed according to IEC 61643-1/GB 18802.1.

Main character:

1. 10/350μs, 8/20μs varistors

2. Single-phase lightning arrester, pluggable.

3. Consist of varistor and thermal disconnection device

4. High discharge capacity, quick response

5. Double thermal disconnection devices, providing more reliable protection

6. Multifunctional connection for conductors and busbars

7. Green window will change when fault and also provide remote alarm control at the same time

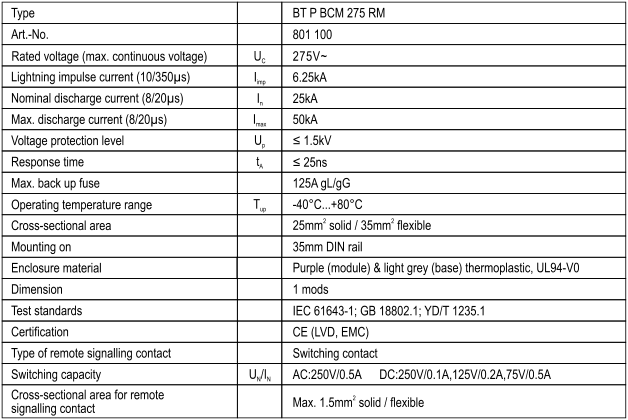

Parameters:
