Product introduction:

This product is designed to protect low voltage devices from surge damage, mainly used in power supply system such as power distribution room, distribution cabinet and other important power supply system, widely used to protect mobile communication station, telecommunication center, airport, finance, and so on. For installation at LPZ 0_A -2 or higher, Applied in SPD Class I (Class B) for various power supply system of lightning current surge protection. Designed according to IEC 61643-1/GB 18802.1.

Main character:

1. 8/20μs varistors for high current.

2. High discharge capacity, quick response

3. Consist of varistor and thermal disconnection device

4. Double terminals for parallel or series (V-shape) connection

5. Multifunctional connection for conductors and busbars.

6. Green window will change when fault and also provide remote alarm control at the same time

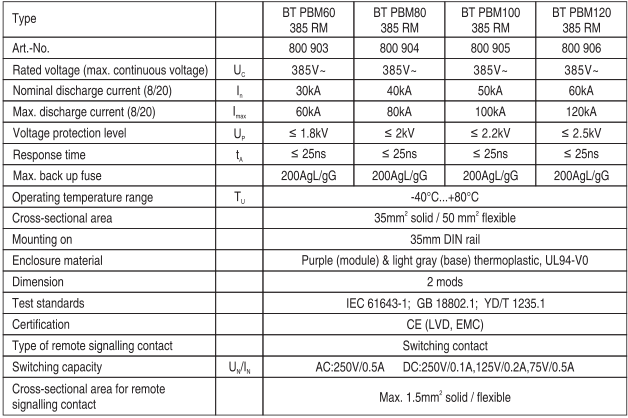

Parameters:
